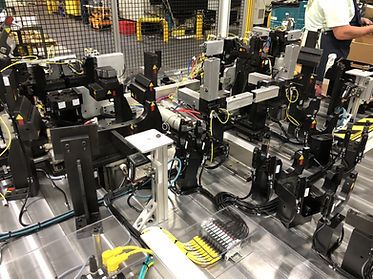

GAGE STATION

16713 Gage Station

(Fixtures & Gages)

FUNCTIONALITY

• Gage that checks profiles of muffler and resonators.

• Checks tips to tailpipe - flatness of manifold, checks flange positions, part placement, mounting flanges, hangers.

• Leak detection

• HMI provides cycle time, end counts,  set up screen, status, fault, troubleshooting screen. Tells operator if the assembly doesn't meet specifications.

• Gage will scribe part number using a Sic scriber on the assembly.

• It will create a label using a Zebra Printer

​

COMPONENTS

• Allen Bradley Compact GuardLogix PLC

• Allen Bradley PanelView Plus 1000 HMI

• Cisco Managed Ethernet Switch

• Keyence Barcode Scanners

• Zebra Printer
